The modular solution for scalable IT workloads
Micro Data Centers from STULZ are a cost-effective way of providing scalable and self-sufficient IT resources that precisely target your needs, upgrading existing critical infrastructure, or simply providing additional computing and storage capacity at the edge of your network (edge computing).
Product Overview
Most important benefits
- Incomparable level of scalability with modular cooling configurations
- "Drop-in" solution (quick to install and easy to expand)
- Industry leading direct liquid-to-chip cooling for highly dense IT workloads
Most important features
- 19” standard rack available in three different heights and two different depths
- Worldwide sales and service network
Most important technical data
- Cooling capacity total (kW): 5 – 80
- Precision air and direct liquid-to-chip cooling for particularly high heat loads
- Fast configuration and delivery
- Suitable for non-data center environments
- "Drop-in" solution (quick to install and easy to expand)
- Incomparable level of scalability with modular cooling configurations
- Industry leading direct liquid-to-chip cooling for highly dense IT workloads
- 19” standard rack available in three different heights and two different depths
- Each device is individually configured, tested and delivered
- Configurable UPS
- Worldwide sales and service network
19” Standard rack with two external dimensions
| Height | Width | Depth | ||
| 600 mm Rack | 800 mm Rack | |||
| 40U | 1,970 mm | 1,000 mm | 1,200 mm | 1,250 mm |
| 42U | 2,068 mm | 900 mm | 1,100 mm | 1,200 mm |
| 45U | 2,149 mm | 1,000 mm | 1,200 mm | 1,250/1,450 mm |
| 48U | 2,282 mm | 1,000 mm | 1,200 mm | 1,450 mm |
Need more information?
Download our brochure!
All details about Micro DC

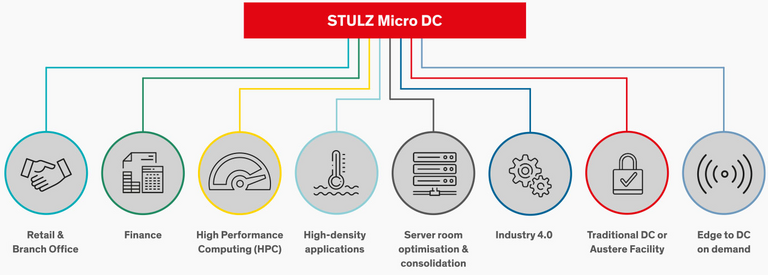

Solutions for Micro Data Center
The STULZ Micro DC is a cost-efficient solution that delivers scalable, demand-driven IT resources, upgrades existing critical infrastructure or easily installs additional computing and storage power at the edge of your network.
- Retail & Branch Office
- Finance
- High Performance Computing (HPC)
- High-density cooling
- Server room optimisation & consolidation
- Industry 4.0
- Traditional DC or Austere Facility
- Edge to DC on demand

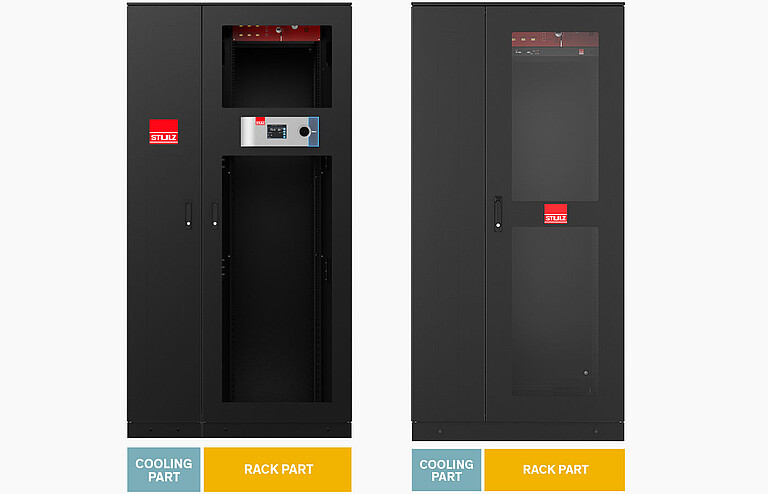

Two versions and four rack sizes
The STULZ Micro DC is a 19" standard rack that is available in four different heights (40, 42, 45 and 48 U) and two different depths (1,250 mm and 1,450 mm).
19” Standard rack with two external dimensions
| Height | Width | Depth | ||
| 600 mm Rack | 800 mm Rack | |||
| 40U | 1,970 mm | 1,000 mm | 1,200 mm | 1,250 mm |
| 42U | 2,068 mm | 900 mm | 1,100 mm | 1,200 mm |
| 45U | 2,149 mm | 1,000 mm | 1,200 mm | 1,250/1,450 mm |
| 48U | 2,282 mm | 1,000 mm | 1,200 mm | 1,450 mm |

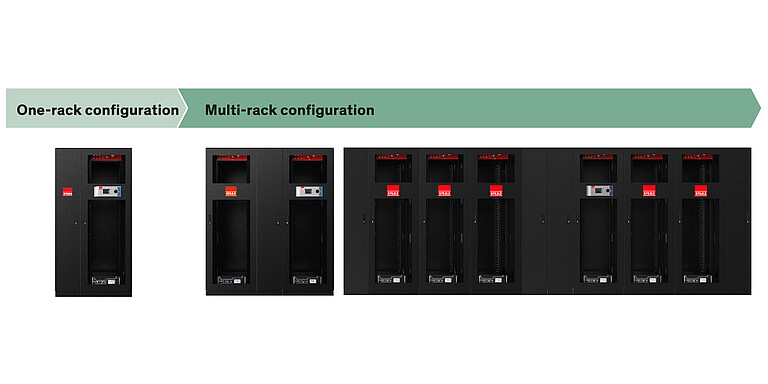

Scalability - Grow with your requirements
Traditional data centers and server rooms often need to be planned years in advance. Expensive restructurings are quite common.
The STULZ Micro Data Center offers an incomparable level of scalability that makes it possible to grow with the requirements. It can grow from a 1-rack configuration with 3 kW to a multi-rack configuration with a heat load of up to 80 kW per rack. The STULZ Micro DC can thus drastically reduce your investment costs in IT infrastructure.
Equipment options
Climate. Customized. Modular and Scalable Solution

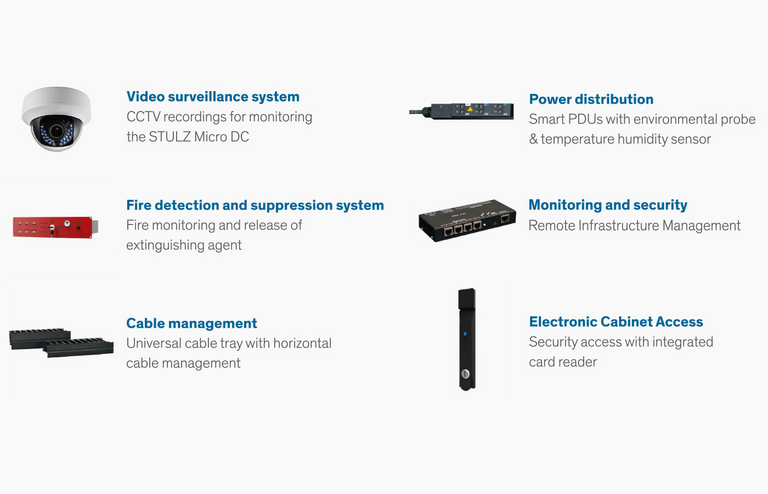

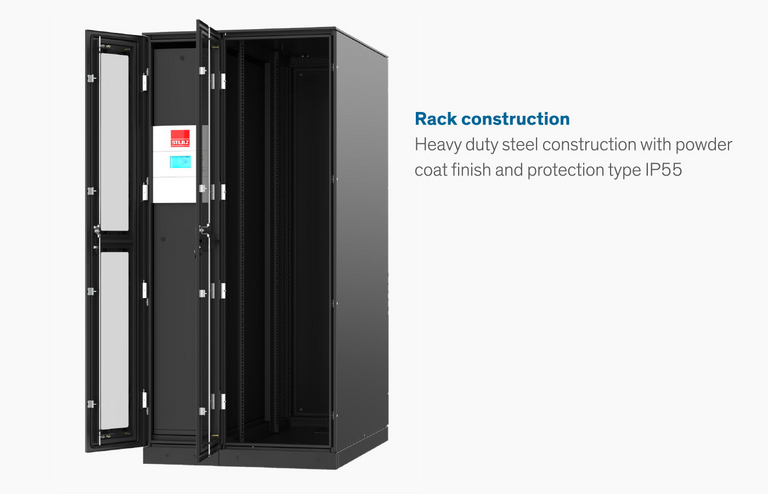

The STULZ Micro DC can be configured with all the key design aspects of a brick and mortar data center, including critical power distribution, fire suppression, physical security, and precision cooling. All configurations of the STULZ Micro DC include a 19" standard rack, which can be easily equipped with accessories such as a UPS, PDU, cable management system, LED lights, software for environmental monitoring, etc.
Additional options:
- Additional security options
- Alarms
- Customizable UPS
- Lighting
- Further options on request
Modular cooling configuration – with precision air and direct liquid-to-chip cooling
Configure the cooling capacity of your STULZ Micro Data Center and expand as required.
The side-mounted cooling solutions
STULZ CyberRow and STULZ Prodigy
- The solution for side-mounting provides 5-25 kW cooling capacity
- Minimal energy consumption
- Precise temperature control
- Available as cooling systems with chilled water, water and glycol or air-cooled
- Maintenance access on front and back
STULZ CyberRow:
- Ready for Indirect Free Cooling
- Optimum adaptation to different return and supply air temperatures by using EC fans
STULZ Prodigy:
- The Remote-Split Unit

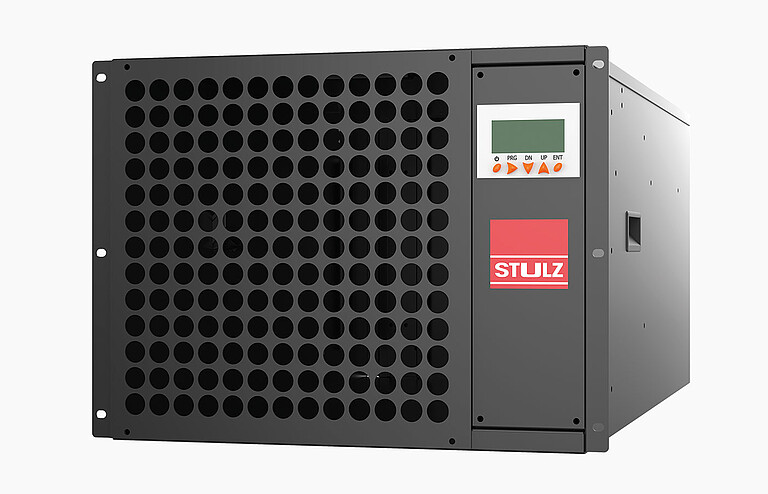

The internally mounted cooling solution
STULZ IRC (In Rack Cooling Unit)
- Air-cooled system
- Internal 6 kW (6U) per unit for additional cooling
- Minimal energy consumption
- Precise temperature control
Service and maintenance
As a company with locations across the globe, we offer everything you need in the extremely dynamic world of information technology – plus professional advice in the right place at the right time.
Our trained and experienced sales and service partners are located in over 140 countries. The resulting proximity to our customers allows fast response times. In addition, regular training courses and an active exchange of information ensure high quality and an extensive knowledge of all our products. This way, you can be sure your products are in the best hands and get the right maintenance – all over the world.
