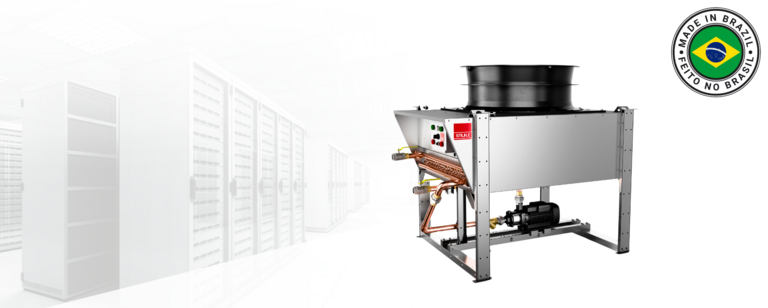

DCBR
Dry Coolers for Water-Cooled Condensation Systems
The DCBR line from STULZ Brazil is designed for climate control systems with water-cooled condensation, delivering high reliability, thermal performance, and installation flexibility. Built with durable materials and high-quality components, DCBR dry coolers are ideal for outdoor applications, including areas with high salinity (marine environments) or industrial emissions, thanks to the optional anti-corrosion treatment.
Additionally, DCBR models can be equipped with an integrated pumping system, enabling autonomous and independent operation without the need for external equipment.
Product Overview
- Heat rejection capacity: 35.8 kW to 76.3 kW
- Axial fans (AC or EC) – factory-configured
- Horizontal or vertical airflow configuration – factory-configured
- Tube-and-fin heat exchangers – enhanced durability and resistance
- Optional integrated pumping system
- Optional anti-corrosion treatment
- Electrical panel with IP65-rated main switch
- Aluminum alloy construction
- Front access for maintenance
- Customizable solutions for specific project needs
- Manufactured in Brazil with tailored sizing available
- High reliability for continuous operation in critical systems
- Independent operation with optional integrated pumping system
- Robust construction, ideal for harsh and outdoor environments
- High thermal efficiency with durable tube-and-fin heat exchangers
- Precise water temperature control with airflow modulation
- Flexible installation, with vertical or horizontal airflow options
- Optional EC fans for lower noise and improved energy efficiency
- Anti-corrosion protection, ensuring long-term durability in marine conditions
- Easy maintenance, with front access and replaceable components
- Local technical support and customization for specific requirements
- Engineered for long service life
- Individually tested at STULZ Brazil’s testing center
- Heat rejection capacity: 35.8 kW to 76.3 kW
- Water flow rate: 6 to 13 m³/h
- Air flow rate: 17,900 to 33,200 m³/h
- Water inlet/outlet temperature: 44/49 °C
- Axial fans: AC or EC
- Available static pressure: up to 75 Pa
- Hydraulic pressure drop: up to 83 kPa
- Noise level: 76 to 80 dB
- Installation: horizontal or vertical
- Tube-fin type heat exchangers: enhanced durability and resistance
- Power supply: 220V or 380V / 3-phase / 60Hz
| Heat output (kW): | 35,8 - 76,3 |
| Air flow rate m³/h: | 6 - 13 |
| Dimensions (W × D × H): | DCBR035: 1535 × 1175 × 1275 mm DCBR050: 1935 × 1175 × 1275 mm DCBR075: 2630 × 1175 × 1275 mm |
